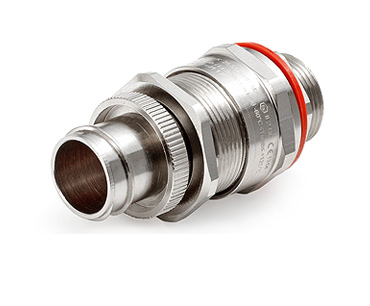

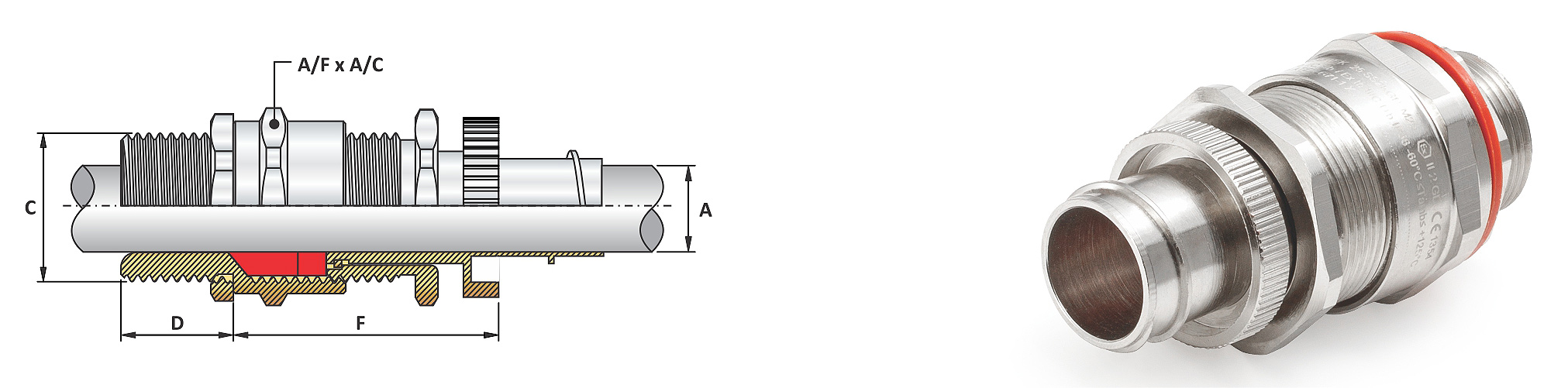

A2FFC- Ex “d” Cable Gland

Size : 16mm to 50mm & ½” to 2½”
Standard : EN60079-0:2012+A11:2013, EN60079-1:2014, EN60079-31:2014
Function : Providing flameproof seal on outer sheaths of all types of unarmoured cable in indoor and outdoor hazardous area. With rotating flexible conduit connection facility.
ATEX Certificate No. : TI16ATEX 671-2 X
Code of Protection : Ex db IIC Gb, Ex tb IIIC Db
Ingress Protection : IP66 as per EN 60529.
Operating Temp. : -60°C to +125°C Material : Brass CW614N/CW617N/EN12165, Stainless Steel 316L
Thread : Metric, NPT, BSP, ET and PG
Features : Outer Displacement Seal
Seal Material : LSOH Silicone Seal & LSOH Nylon Washer
Accessories : PVC Shroud, Earth Tag, Thread Seal, Adaptor & Reducer
