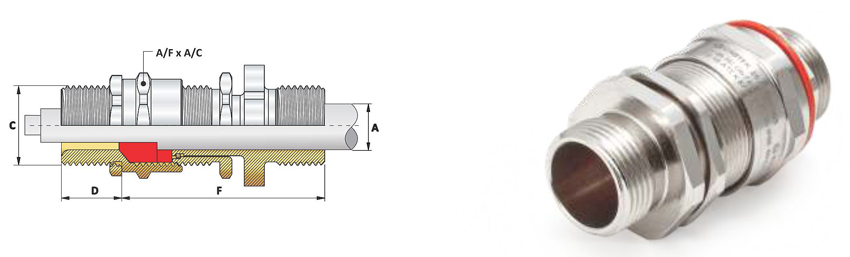

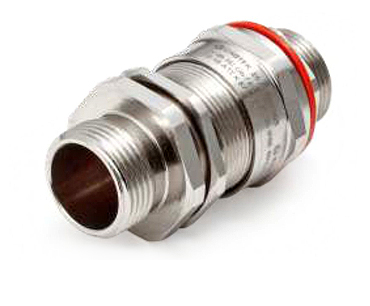

A2FFRM- Ex “d” Cable Gland

Size : 20mm to 32mm & ½” to 1”
Standard : EN60079-0:2012+A11:2013, EN60079-1:2014, EN60079-31:2014
Function : Providing flameproof seal on outer sheaths of Flat Form Unarmoured & & Braid Armour cable in indoor and outdoor hazardous area with rotating male rigid conduit connection facility.
Code of Protection : Ex db IIC Gb, Ex tb IIIC Db
Ingress Protection : IP66 as per EN 60529.
Operating Temp. : -60°C to +135°C
Material : Brass CW614N/CW617N/EN12165, Stainless Steel 316L
Thread : Metric, NPT, BSP, ET and PG
Features : Outer Displacement Seal
Seal Material : LSOH Silicone Seal & LSOH Nylon Washer
Accessories : PVC Shroud, Earth Tag, Thread Seal, Adaptor & Reducer.
