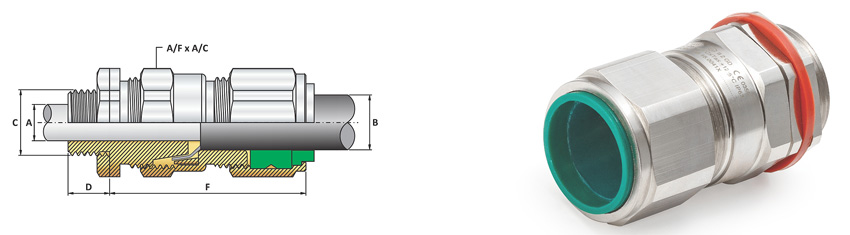

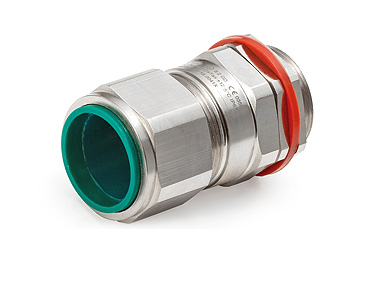

CWe Ex “e” Cable Gland

Size : 16mm to 90mm & ½” to 3½”
Standard : EN/IEC 60079-0:2012+A11:2013/2011, EN/IEC 60079-1:2014, EN/IEC 60079-7:2015, EN/IEC 60079-31:2014/2013
Function : Providing environmental seal on the cable outer sheath. Also provides mechanical cable retention & electrical continuity via armoured wire termination in indoor and outdoor hazardous area with all types of SWA cable.
IECEx Certificate No. : IECEx ITS 16.0041X
ATEX Certificate No. : ITS16ATEX100935X
Code of Protection : Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection : IP67 as per EN 60529.
Operating Temp. : -60°C to +125°C
Material : Brass CW614N/CW617N/EN12165, Stainless Steel 316L
Thread : Metric, NPT, BSP, ET and PG
Cable Type : Single Wire Armoured (SWA) Cable
Seal Material : LSOH Silicone Seal & LSOH Nylon Washer
Features : Outer Compression Seal and Armoured Ring
Accessories : PVC Shroud, Earth Tag, Thread Seal, Adaptor & Reducer
