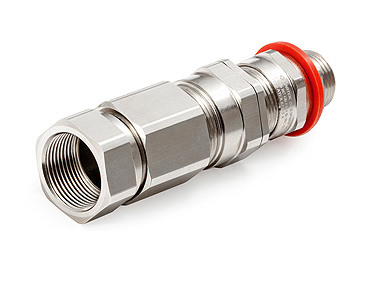

E1FWFC Ex “d” Cable Gland

Size : 16mm to 50mm & ½” to 1½”
Standard : EN60079-0:2012+A11:2013, En60079- 1:2014, EN60079-31:2014
Application : For indoor & outdoor hazardous area use with all types of SWA cable providing flameproof seal on cable inner sheath and environmental seal on cable outer sheaths. Also provides mechanical retention & electrical continuity via armour wire termination with rotating rigid conduit connection facility.
ATEX Certificate No. : TI16ATEX 671-3 X
Code of Protection : Ex db IIC Gb, Ex tb IIIC Db
Ingress Protection : IP66 as per EN 60529.
Operating Temp. : -60°C to +125°C
Material : Brass CW614N/CW617N/EN12165, Stainless Steel 316L
Thread : Metric, NPT, BSP, ET and PG
Cable Type : Single Wire Armoured (SWA) Cable
Features : Displacement Seal and Armoured Ring
Seal Material : LSOH Silicone Seal & LSOH Nylon Washer
Accessories : PVC Shroud, Earth Tag, Thread Seal, Serrated Washer
