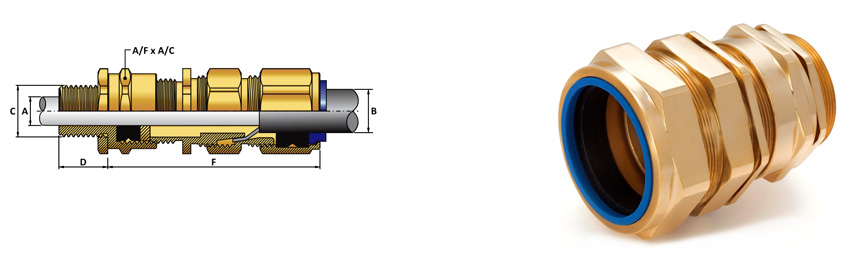

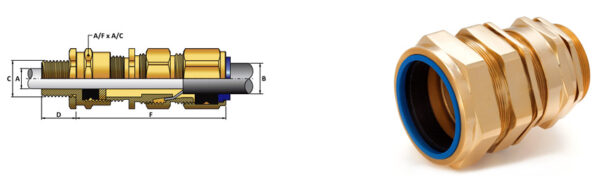

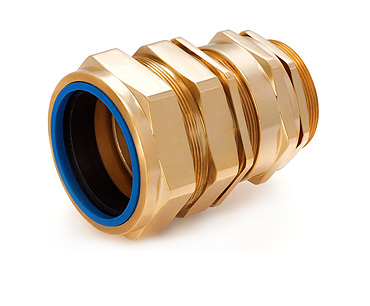

E1X Cable Gland

Standard : BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Application : For indoor & outdoor use with all types of STA cable providing environmental seal on both the cable inner & outer sheaths. Also provides mechanical retention & electrical continuity via armour wire termination.
Ingress Protection : IP66
Material : Brass CW614N, Nickel Plated Brass, Stainless Steel 316L
Thread : Metric, NPT
Operating Temp. : -60°C to +125°C
Cable Type : Wire Braid Armour, Screened Flexible Wire Braid (CY/SY), Pliable Wire Armour (PWA), Steel Tape Armour (STA), Aluminium Strip Armour ( ASA)
Features : Displacement Seal and Two part Armour Lock
Seal Material : LSOH Silicone Seal & LSOH Nylon Washer
Accessories : PVC Shroud, Earth Tag, Serrated Washer, Entry Thread Seal
