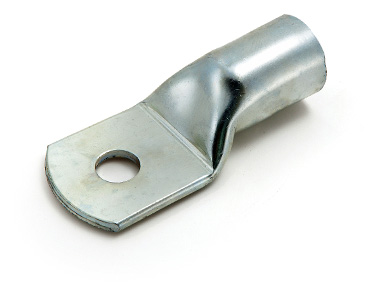

Long Barrel Tinned Copper Tubular Terminal

Cable Size Sq mm	Hole Size D2	Dimensions							CAT NO.
Cable Size Sq mm	Hole Size D2	D1	D3	B	A	C1	C2	J	CAT NO.
6	5.20	3.80	5.50	10.00	9.00	5.00	6	23	CLBCT-65
6	6.50	3.80	5.50	10.00	9.00	5.00	6	23	CLBCT-66
6	8.20	3.80	5.50	12.00	9.00	5.00	6	27	CLBCT-68
10	6.50	4.50	6.20	12.00	9.00	6.00	7	25	CLBCT-106
10	8.20	4.50	6.20	12.00	9.00	6.00	9	27	CLBCT-108
10	10.50	4.50	6.20	15.00	9.00	8.50	10.5	32	CLBCT-1010
16	6.50	5.40	7.10	12.00	12.00	7.00	7	30	CLBCT-166
16	8.20	5.40	7.10	12.00	12.00	7.00	9	32	CLBCT-168
16	10.50	5.40	7.10	15.00	12.00	8.00	12	36	CLBCT-1610
16	13.00	5.40	7.10	16.00	12.00	8.00	12	36	CLBCT-1613
25	6.50	7.00	8.80	16.00	12.00	9.00	10	35	CLBCT-256
25	8.20	7.00	8.80	16.00	12.00	9.00	10	35	CLBCT-258
25	11.00	7.00	8.80	16.00	12.00	9.00	10	35	CLBCT-2511
25	13.00	7.00	8.80	16.00	12.00	9.00	10	35	CLBCT-2513
35	6.5	8	10	17	15	9	10	39	CLBCT-356
35	8.4	8	10	17	15	9	10	39	CLBCT-358
35	11	8	10	17	15	9	10	39	CLBCT-3510
35	13	8	10	17	15	9	10	39	CLBCT-3512
50	6.5	9.2	11.2	20	20	10	10	46	CLBCT-506
50	8.4	9.2	11.2	20	20	10	10	46	CLBCT-508
50	11	9.2	11.2	20	20	10	10	46	CLBCT-5010
50	13	9.2	11.2	20	20	10	10	46	CLBCT-5012

Cable Size Sq mm	Hole Size D2	Dimensions							CAT NO.
Cable Size Sq mm	Hole Size D2	D1	D3	B	A	C1	C2	J	CAT NO.
70	6.5	11.6	13.8	20	20	13.5	13.5	58	CLBCT-706
70	8.4	11.6	13.8	20	20	13.5	13.5	58	CLBCT-708
70	11	11.6	13.8	20	20	13.5	13.5	58	CLBCT-7010
70	13	11.6	13.8	20	20	13.5	13.5	58	CLBCT-7012
95	8.4	12.8	15.6	22	24	12.5	12.5	55	CLBCT-958
95	11	12.8	15.6	22	24	12.5	12.5	55	CLBCT-9510
95	13	12.8	15.6	22	24	12.5	12.5	55	CLBCT-9512
95	17	12.8	15.6	22	24	12.5	12.5	55	CLBCT-9516
120	8.4	14.8	17.8	25.5	26	14	14	62	CLBCT-1208
120	11	14.8	17.8	25.5	26	14	14	62	CLBCT-12010
120	13	14.8	17.8	25.5	26	14	14	62	CLBCT-12012
120	17	14.8	17.8	25.5	26	14	14	62	CLBCT-12016
150	8.4	16.5	20.5	32	30	16	16	70	CLBCT-1508
150	11	16.5	20.5	32	30	16	16	70	CLBCT-15010
150	13	16.5	20.5	32	30	16	16	70	CLBCT-15012
150	17	16.5	20.5	32	30	16	16	70	CLBCT-15016
185	8.4	18	22	34.5	33	17.5	17.5	80	CLBCT-1858
185	11	18	22	34.5	33	17.5	17.5	80	CLBCT-18510
185	13	18	22	34.5	33	17.5	17.5	80	CLBCT-18512
185	17	18	22	34.5	33	17.5	17.5	80	CLBCT-18516

Cable Size Sq mm	Hole Size D2	Dimensions							CAT NO.
Cable Size Sq mm	Hole Size D2	D1	D3	B	A	C1	C2	J	CAT NO.
240	11	22.5	26	39	41	21	21	96	CLBCT-24010
240	13	22.5	26	39	41	21	21	96	CLBCT-24012
240	17	22.5	26	39	41	21	21	96	CLBCT-24016
240	21	22.5	26	39	41	21	21	96	CLBCT-24020
300	11	24.5	28.5	43.5	44	22	22	102	CLBCT-30010
300	13	24.5	28.5	43.5	44	22	22	102	CLBCT-30012
300	17	24.5	28.5	43.5	44	22	22	102	CLBCT-30016
300	21	24.5	28.5	43.5	44	22	22	102	CLBCT-30020
400	13	28.5	33	47	47	26	26	114	CLBCT-40014
400	17	28.5	33	47	47	26	26	114	CLBCT-40016
400	21	28.5	33	47	47	26	26	114	CLBCT-40020
500	17	30	35.5	54	54	26.5	26.5	122	CLBCT-50016
500	21	20	35.5	54	54	26.5	26.5	122	CLBCT-50020
630	17	35	40.75	60	63	29.5	29.5	137	CLBCT-63016
630	21	35	40.75	60	63	29.5	29.5	137	CLBCT-63020
630	BL	35	40.75	60	63	29.5	29.5	137	CLBCT-630
800	17	39.5	46	80	80	34	34	166	CLBCT-80016
800	21	39.5	46	80	80	34	34	166	CLBCT-80020
800	BL	39.5	46	80	80	34	34	166	CLBCT-800
1000	17	43	54	90	88	42	42	190	CLBCT-100016
1000	21	43	54	90	88	42	42	190	CLBCT-100020
1000	BL	43	54	90	88	42	42	190	CLBCT-1000
