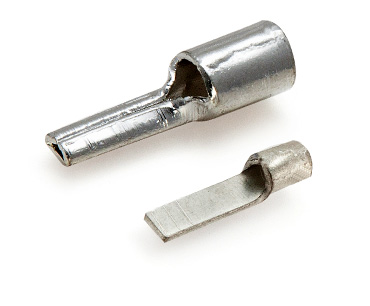

Pin Type Tinned Cable Terminal Ends

Cable Size Sq mm	A	C	D	B	G+H	J	Type	Insulated CAT NO.	C-1	J-1	CAT NO.
1.5	1.60	3.20	1.90	5	10	17	I	CPI-15	4	10	CP-15
1.5	1.60	3.20	3.10	5	10	17	II	CPI-152	4	10	CP-152
2.5	2.30	3.90	1.90	5	10	17	I	CPI-25	4.5	10	CP-25
2.5	2.30	3.90	3.10	5	10	17	II	CPI-252	4.5	10	CP-252
4	2.90	4.90	2.70	6	10	20	I	CPI-42	6.5	15	CP-42
4	3.60	5.60	5.10	6	10	20	II	CPI-43	6.5	15	CP-43
6	3.60	5.60	2.70	6	10	20	I	CPI-63	6.5	15	CP-63
6	4.00	6.00	2.70	6	10	20	II	CPI-64	6.5	15	CP-64
10	4.40	6.40	5.10	8	12	22	II	CPI-10	8	15	CP-10
16	5.80	8.20	5.50	10	13	26	II	CPI-16	10	20	CP-16
25	7.50	11.10	7.20	11	15	33	II	CPI-25			CP-25
35	9.00	12.60	8.20	12	15	33	II	CPI-35			CP-35
50	10.50	14.10	9.00	16	17	41	II	CPI-50			CP-50
70	12.00	16.00	10.00	16	16	46	II	CPI-70			CP-70
95	13.50	18.10	10.00	20	20	51	II	CPI-95			CP-95
